Twist
Power Module

Smart. Reprogramable. Stackable.
Module Datasheet

For DC and AC applications up to 100V

From Idea to Power in Minutes

TWIST Power Modules are versatile building blocks designed for the fast and efficient development of power inverter and converter prototypes. Engineered for maximum flexibility they are meant to accelerate the development and testing of control strategies.

DC Voltage 100 V
Output current 2 × 10 A
Topology Full Bridge
Typical Power 300W

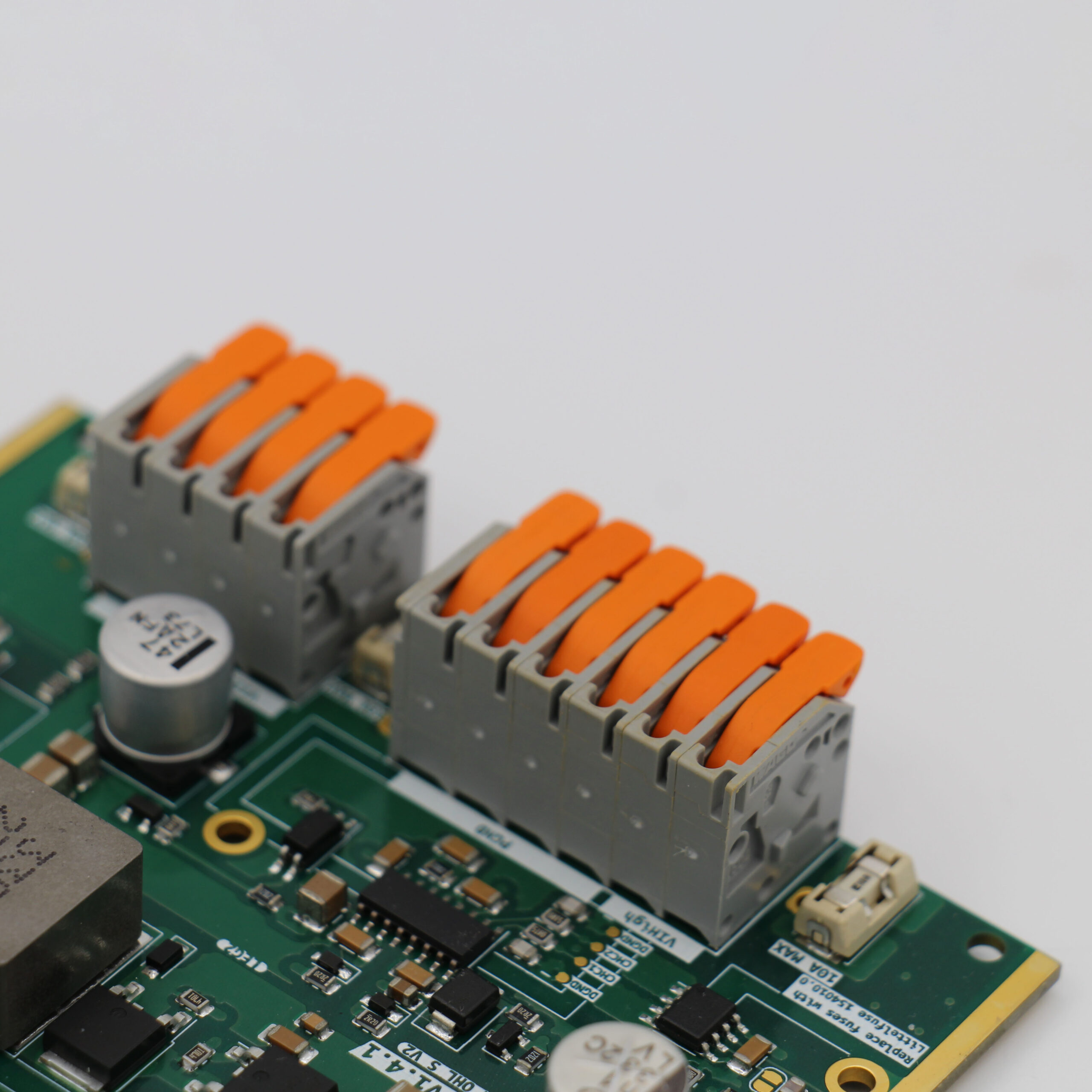

Easily connect your power input and output

Plug-in your computer via USB

Code your solution

Drive your power target

Power libraries ready to use

Build your solution from a wide library of applications and pre-made examples

Need more? Power Up!

In-built modularity allows you to connect Twists together to reach your target power.

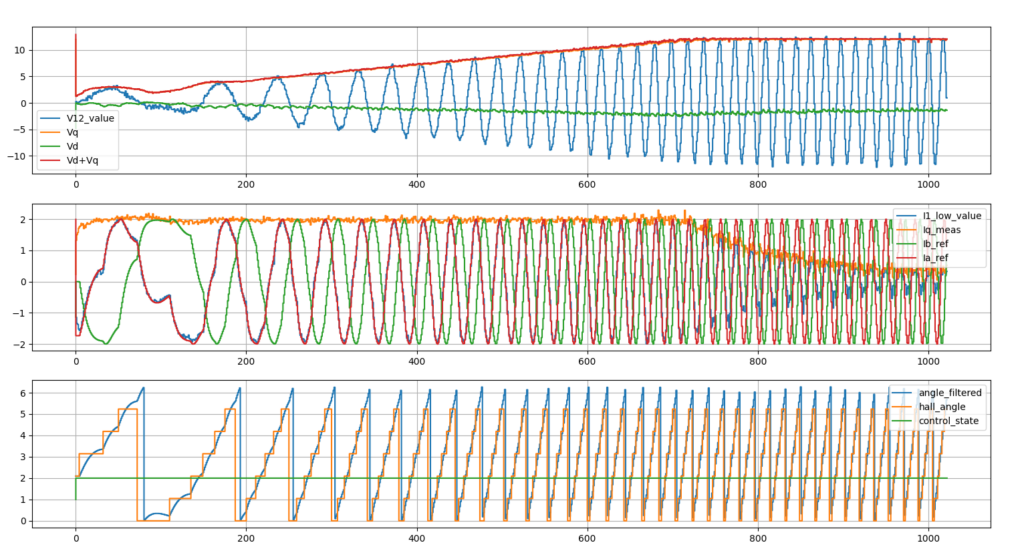

📈 Live Power Measurements, No Scope Needed

Monitor your system in real time:

Twist provides direct access to live voltage and current measurements through the SPIN board. Even without oscilloscope — You get insights from your laptop while coding, testing, or debugging.

🔍 Oscilloscope-Friendly Design

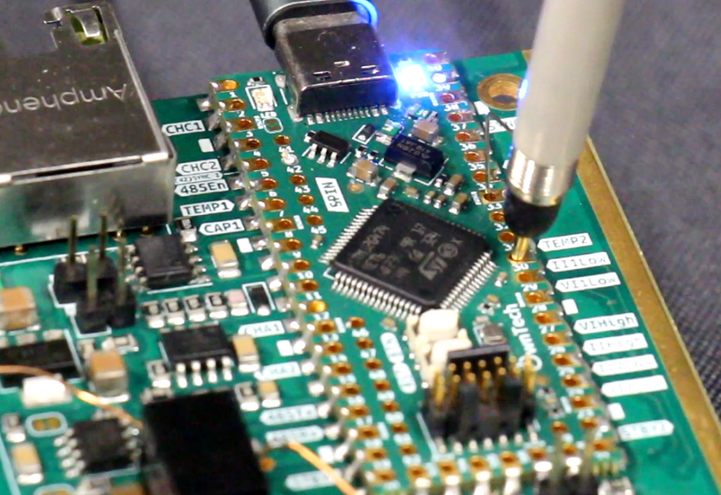

For deeper analysis, Twist includes dedicated probe points that let you easily connect oscilloscope probes. This makes signal inspection and diagnostics straightforward, without needing to modify or adapt your test setup.

🛡️ Built-In Galvanic Isolation for Safety

Twist includes galvanic isolation between the power side and the microcontroller, ensuring a high level of safety and signal integrity. This separation protects your development system from power spikes, noise, and ground loops, making it safer to work with high-voltage or sensitive applications.

🎓 Perfect for Learning and Teaching

Twist is compatible with a dedicated pedagogical box—a comprehensive kit designed for education and experimentation. Whether you’re in a classroom or a lab, this box offers structured learning tools, and hands-on guidance to explore power electronics and embedded development.

An open-source philosophy

Free to use, developed by a community of makers.
Challenging ongoing project, new features and improvements are released regularly.
Join us in the development process!

Discord
Github
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image

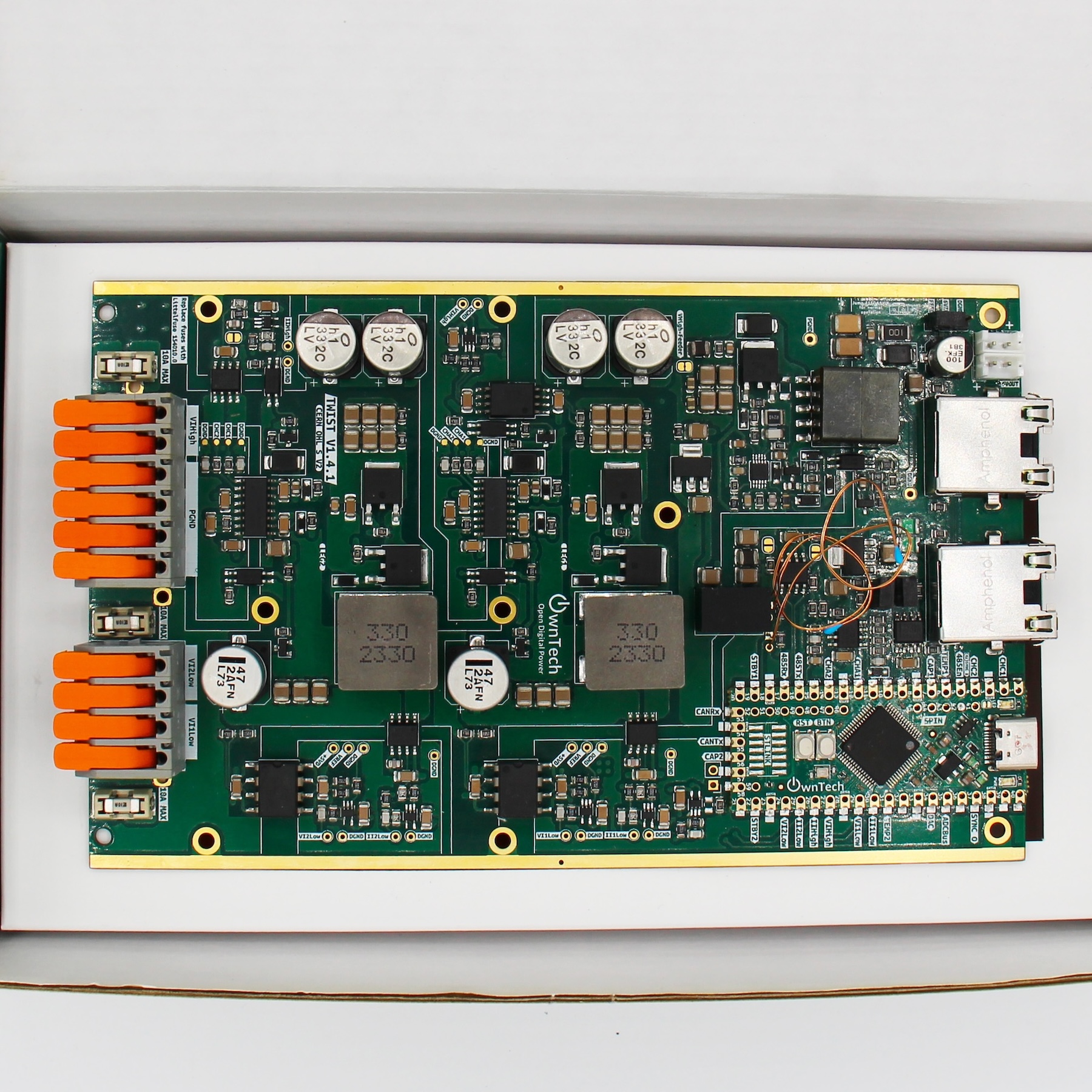

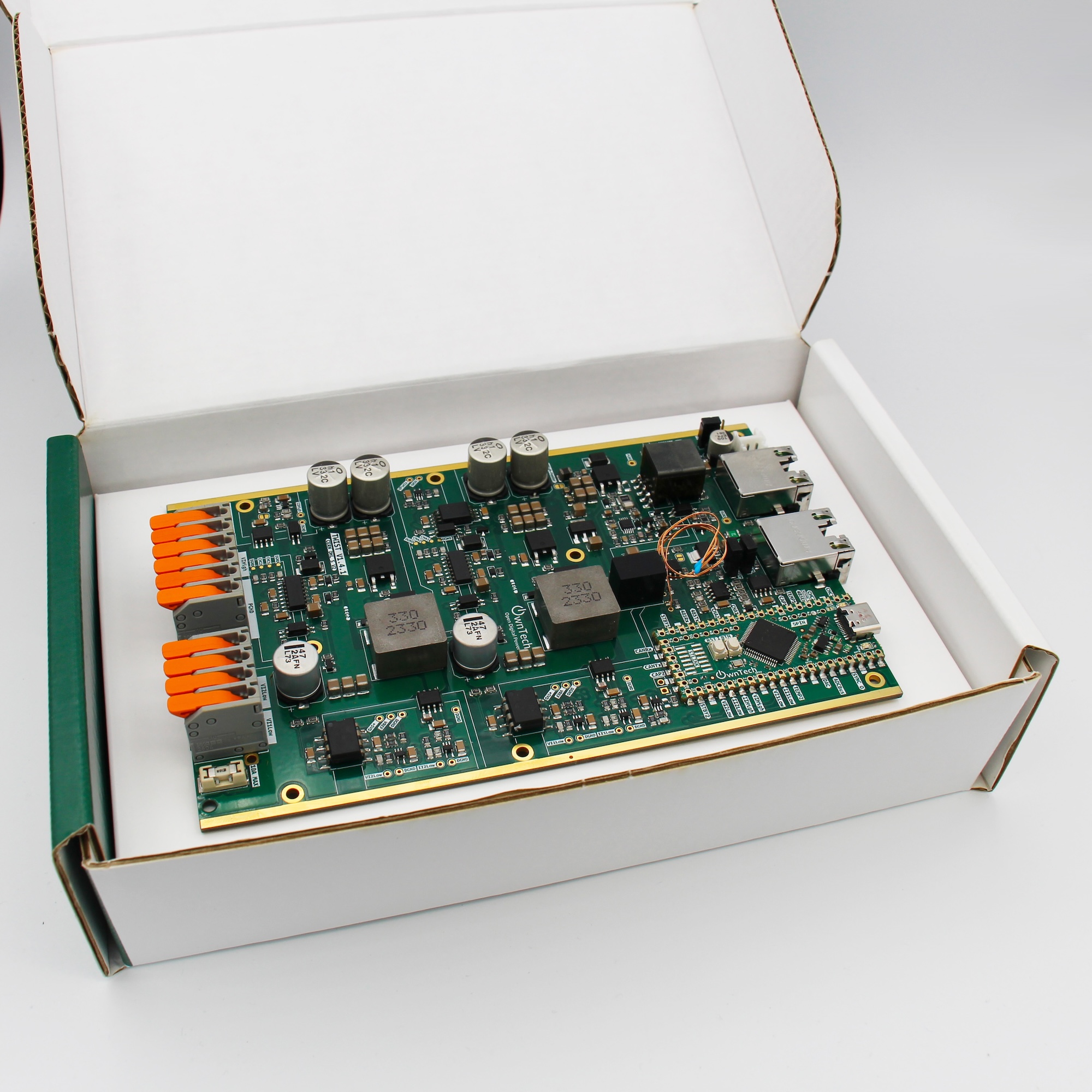

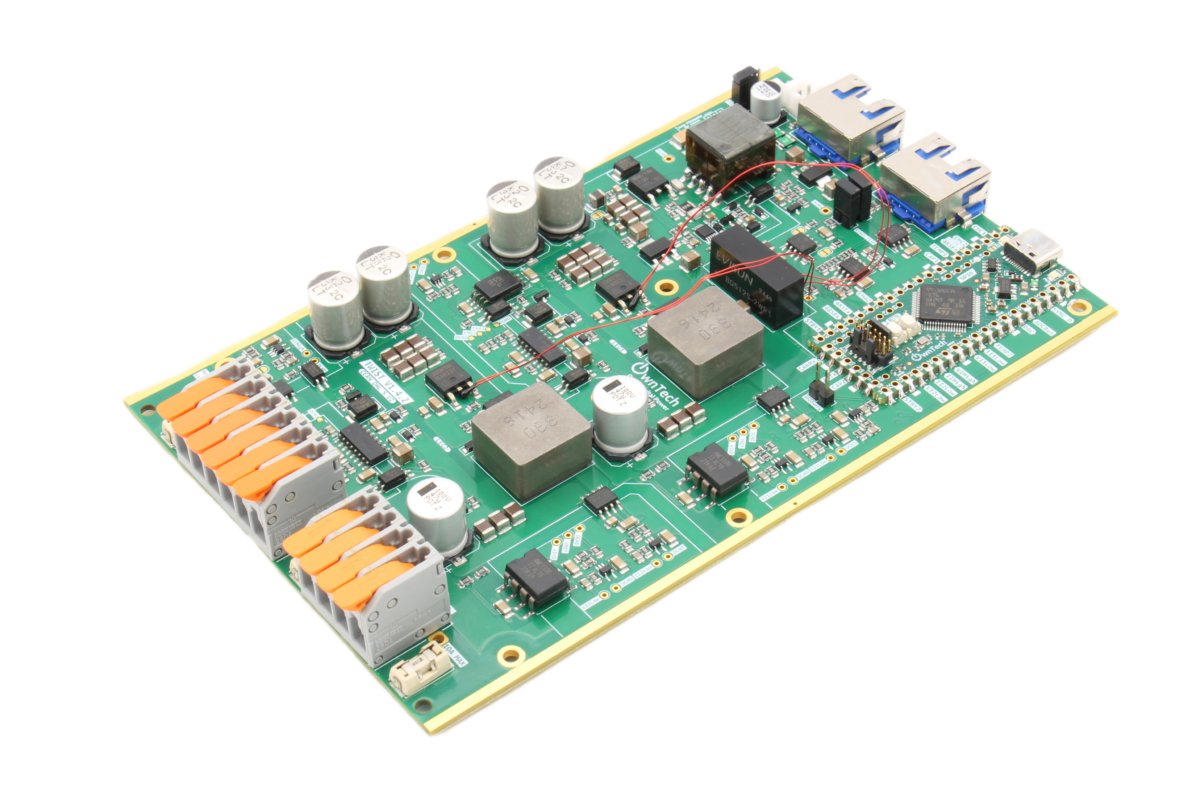

TWIST – Multi purpose power converter

330,00 € – 369,00 € ex. VAT

SKU: TWT141 Category:

Description

A Scalable Power Development Platform – Tailored to Your Workflow

The Twist Power Module is a flexible building block for prototyping power inverters and converters, built to accelerate the development of high-efficiency DC and AC systems. With a full-bridge topology supporting up to 100 V, 2 × 10A, and 300 W, it enables fast, modular assembly of power stages for a wide range of applications — from motor drives to grid-connected converters.

Now available in two configurations to match your development needs:
Twist Power Module with Spin (Soldered Bundle)

Includes the Spin microcontroller board pre-installed, enabling fast startup and advanced features out of the box. With this version, you gain:

  • A USB interface for easy programming and integration
  • Real-time access to current and voltage measurements — no oscilloscope required
  • Direct laptop connection for development, testing, and debugging
  • Pre-supported control libraries and application examples
Twist Power Module (Base)

Designed for developers who already have a control system or prefer full flexibility, the base version offers a clean, modular power stage ready to integrate into custom workflows or larger systems. The base set is useful if you want to control the power module through your own control board.

Both versions feature:
  • Stackable architecture for scaling power
  • Built-in galvanic isolation for safety and signal integrity
  • Dedicated probe points for direct oscilloscope access
  • Open-source design backed by an active development community

Whether you’re building a custom control stack or need a complete, ready-to-run setup, Twist adapts to your prototyping needs with minimal overhead and maximum flexibility.

Additional information

Weight 270 g
Dimensions 222 × 122 × 55 mm

Why choose TWIST



  • Dozens of ready to use examples
  • Turn key solution to prototype power electronics
  • Flexible, and modular, covering advanced use cases making it ideal for Research and Education

Avec des exemples comme la modulation de l’énergie pour la mobilité ou la maximisation de la production d’énergies renouvelables, les étudiants s’engagent plus facilement et développent des compétences complexes plus rapidement.

-Noémi Lanciotti, PRAG en GEII, IUT d’Evry
