OwnVerter
Motor Drive

Simple. Reprogramable. Multi-sensor.
Documentation

Your motor control platform

OwnVerter Power Modules are versatile building blocks designed for the fast and efficient development of motor drives and inverters.

DC Voltage 100 V
Output current up to 50A
Topology 3 phase inverter
Typical Power 600W

Easily connect to your motor

Plug-in your computer via USB

Code your solution

Drive your power target

Power libraries ready to use

Build your solution from a wide library of motor applications using different sensors.

Need more? Power UP!

In-built fast communication protocol allows you to synchronize multiple ownverters together for more complex use cases.

📈 Live Power Measurements, No Scope Needed

Monitor your system in real time:

Ownverter provides direct access to live voltage and current measurements through the SPIN board. Even without oscilloscope — You get insights from your laptop while coding, testing, or debugging.

🔍 Oscilloscope-Friendly Design

For deeper analysis, Ownverter includes dedicated probe points that let you easily connect oscilloscope probes. This makes signal inspection and diagnostics straightforward, without needing to modify or adapt your test setup.

🛡️ Built-In Galvanic Isolation for Safety

Ownverter includes galvanic isolation between the power side and the microcontroller, ensuring a high level of safety and signal integrity. This separation protects your development system from power spikes, noise, and ground loops, making it safer to work with high-voltage or sensitive applications.

And more..

✅ Sensor-Ready — Fully compatible with sin/cos, A/B Index, and Hall effect position sensors, making it ideal for motor control labs and precision feedback experiments.

✅ Smart Current Sensing — Equipped with a dual-range embedded current calibers system: switch between 0–20A and 0–50A ranges to match your test setup and ensure optimal measurement resolution every time.

An open-source philosophy

Free to use, developed by a community of makers.
Challenging ongoing project, new features and improvements are released regularly.
Join us in the development process!

Discord
Github

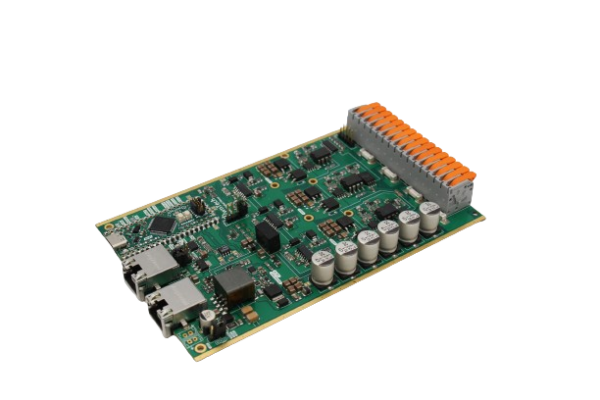

Product image

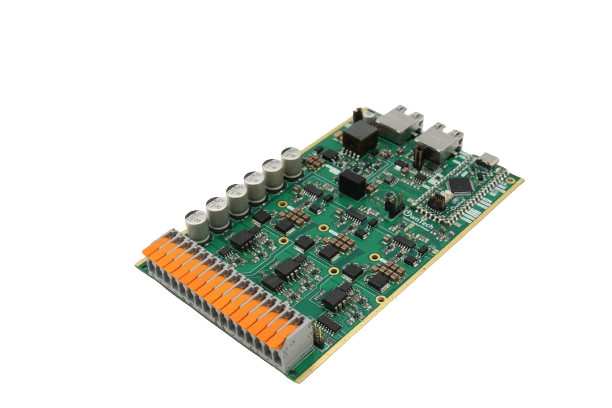

Product image

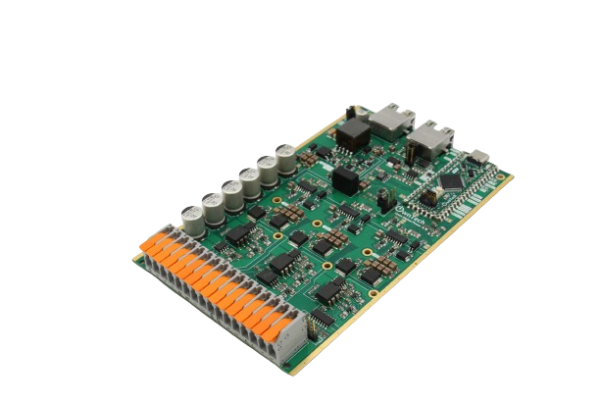

Product image

OwnVerter – Motor control made easy

460,00 € – 499,00 € ex. VAT

SKU: OVT1xx Category:

Description

OwnVerter – A Flexible Motor Control Platform

The OwnVerter is a versatile, open-source power module built for fast development of motor drives and inverter systems. With a robust three-phase topology, support for up to 100V and 50A output, and a typical power rating of 600W, OwnVerter is ready to meet the demands of modern motor control applications.

Two Versions to Match Your Workflow

OwnVerter (Base Module Only)

Ideal for users who already have a control system or prefer to integrate their own microcontroller or no code controller solutions.

OwnVerter with Spin (Soldered Bundle)

Includes the SPIN microcontroller board pre-soldered, offering a fully integrated solution for motor control development. This version enables:

  • USB interface for fast programming and setup
  • Real-time current and voltage monitoring directly from your laptop
  • Built-in libraries for motor control and sensor integration

Key Features

  • Three-phase inverter topology supporting DC inputs up to 100V and output currents up to 50A
  • Sensor-ready design — compatible with sin/cos, A/B Index, and Hall effect sensors
  • Dual-range current sensing — switch between 0–20A and 0–50A for optimal resolution
  • Galvanic isolation between control and power sections for safety and signal integrity
  • Oscilloscope-friendly with dedicated probe points for direct signal analysis
  • Fast communication protocol for multi-board synchronization

Built for Developers and Educators

Whether you’re building a new motor control system or exploring advanced drive strategies in a lab, OwnVerter provides the flexibility and openness needed for innovation. Its modular design allows seamless scaling and custom configurations, while community support ensures continuous evolution.

Open-Source and Actively Developed

OwnVerter is fully open-source and maintained by a growing community. New features, hardware revisions, and software updates are released regularly. Get involved via GitHub or Discord and help shape the future of motor control.

Additional information

Weight 270 g
Dimensions 222 × 122 × 55 mm
